Kusk-gateway v0.0.0.alpha.2 was released today with lots of enhancements, new features and bug fixes.
What makes Kusk-gateway unique is that it uses the ubiquitous OpenAPI specification file as a single source of truth for making an API available to consumers, which includes routing configuration, request validation, timeouts, etc. It will especially resonate with developers and teams like ours, who have adopted a design-first approach to API development. Thanks to Kusk-gateway and OpenAPI (Swagger), you can quickly publish your APIs deployed in Kubernetes without having to add any additional configuration resources, which plays nicely with both manual and automated/GitOps-based development workflows.

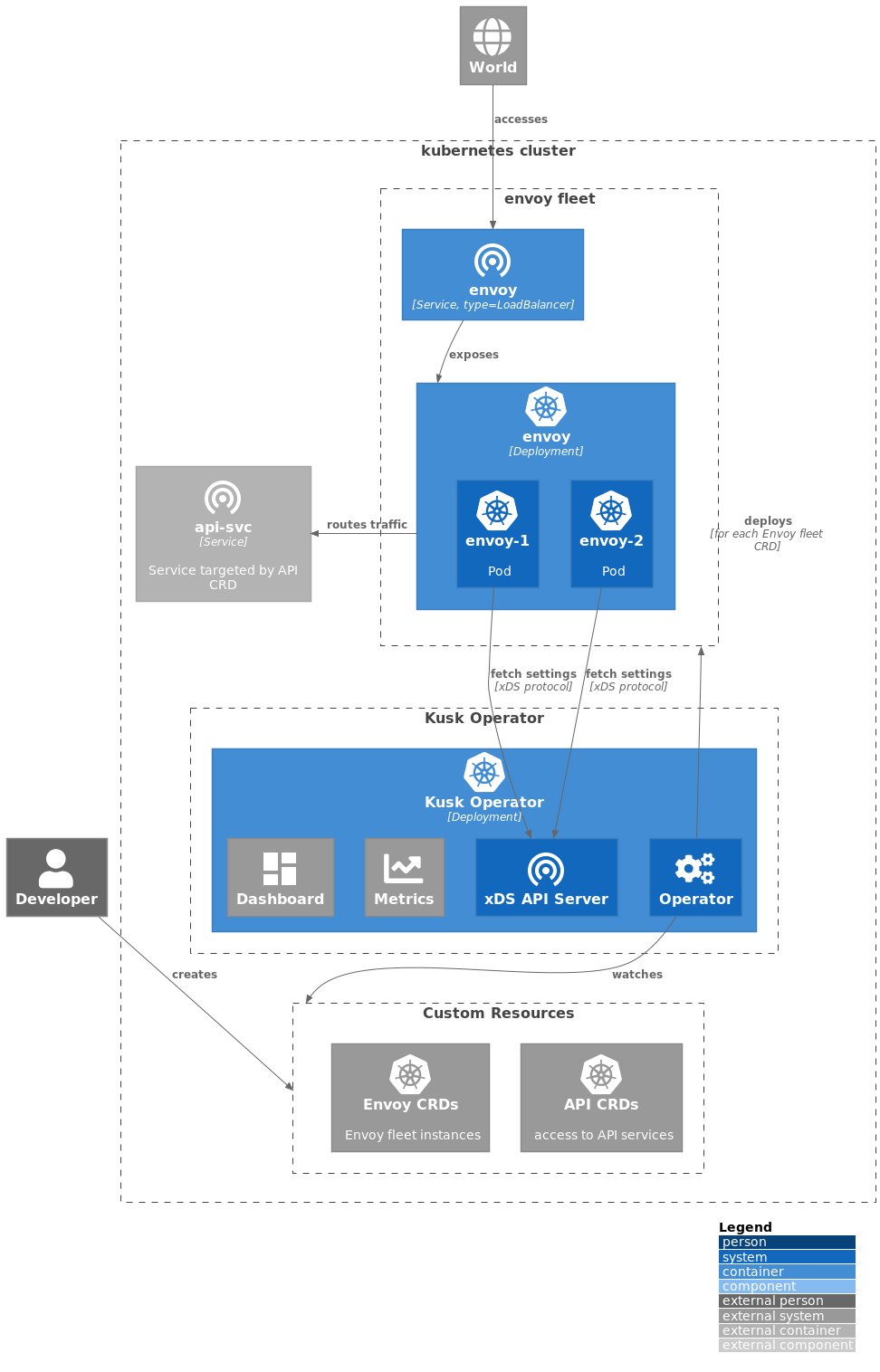

Under the hood, Kusk-gateway consists of an Operator (Kusk-gateway Manager) that configures the battle proven Envoy Proxy to expose your APIs or any deployed in K8s web service to outside consumers. Check out the architecture diagram for more information on how Kusk-gateway works.
New in this Release
This release was mostly focused on improving Envoy deployment and its configuration in various K8s related scenarios, making the Gateway capable of running in production environments.
The notable changes from the first alpha release are:
- Websockets connection upgrade can be enabled per any path/method.
- Dynamic request validation based on OpenAPI schema with automatic 400 error responses with meaningful error messages.
- TLS support - we’re now able to serve traffic using HTTPS with the configurable certificates list and cipher suites.
- Multiple gateways (read: Envoy Fleets) are now possible to be deployed and the API and Static Routes configurations can be bound to a specific fleet of Envoy pods. This enables a configuration of multiple websites on different Load Balancing IP addresses.
- Envoy pods now can be flexibly configured with custom CPU/Memory resources limits, custom Envoy image tag and pod scheduling directives - we can start them on any node pool with different node taints tolerations and pod affinity/anti-affinity configurations. This makes it possible to set up a Highly Available Gateway.
- Gateway K8s service configuration is much more flexible now, with the ability to specify the preconfigured Load Balancing IP address and the list of opened ports or even change the type of the service itself. E.g. you can disable HTTPS or even HTTP port or open it on a different port number than usual, try to use Envoy gateway as a completely internal K8s service, etc.
One can also configure the custom K8s annotations for this Load Balancing service, enabling the different Load Balancer tunables that are cloud provider specific. E.g. if you want to create the gateway as a GKE internal load balancing service, you can specify the related annotations to setup the internal LB.
- Observability improvements.
Envoy access logs can be enabled to stream to pod stdout, with either text (unstructured) or JSON (structured) log format. JSON is more suitable for the injection into any log aggregation service, while text based is more human-readable.
Log entries are configurable, i.e. we can log only the needed for the analysis fields.
Custom annotations can be added to Envoy pods - with the specific annotations Prometheus will be able to scrape the traffic stats. This way it is possible to get requests metrics like the number of 5xx HTTP codes, indicating the percentage of failed requests.
Automatic request validation
This feature allows you to configure Kusk-gateway to automatically validate the incoming requests against OpenAPI schema before they are forwarded to the upstream services. Kusk-gateway will validate the request (including its body) and return a HTTP 400 error with a helpful message in case it’s appropriate.
This feature can immensely improve developer’s productivity with quick iteration cycles when working with new APIs and services.
Validation can be enabled on any level, be it the whole service — top-level x-kusk extension or a single endpoint. To enable validation, simply add the following lines to your OpenAPI schema before uploading it to Kusk Gateway:
So the final result would look like this:
Or like this — in case you need validation enabled on a specific endpoint:
New EnvoyFleet configuration options
To give you a quick glance on how it looks, here’s EnvoyFleet Custom Resource with all tunables enabled or commented:
The new Kusk-gateway Manager version is available as a Docker image and can be deployed with our Helm charts.
If you’d like to know more about the Kusk Gateway or want to take it for a spin- the documentation will guide you through the configuration and the TodoMVC example can be set up and destroyed within 10 minutes locally with Minikube.
In its current alpha state, Kusk-Gateway is already capable of serving your traffic, however there are improvements and features to add before we are production ready.
Some of the things we are working on:
- Mocking of OpenAPI endpoints using the same OpenAPI definition and its examples.
- Dashboard for the better visibility of the Gateway state and its traffic, calling the endpoints using the usual Swagger dashboard and more.
- Requests Rate Limiting.
If you’d like to stay updated to the future releases, blogs or events, please join a growing community of our users by subscribing here.
